Product: Seat Motor
Main types of seat motors:
• Horizontal motors
• Front lift motor
• Rear lift motor
• Tuning the motor
• Shoulder adjustment motor
• Leg adjustment motors
• Vibration motor
Magnetic Type:
• 2-pole ferrite
• 4 pole rare
• 2 extremely high performance ferrites
• 4-pole ferrite
Main features:
• With and without memory
• SLP
• Left and right
• Electromagnetic Interference EMC3, EMC5

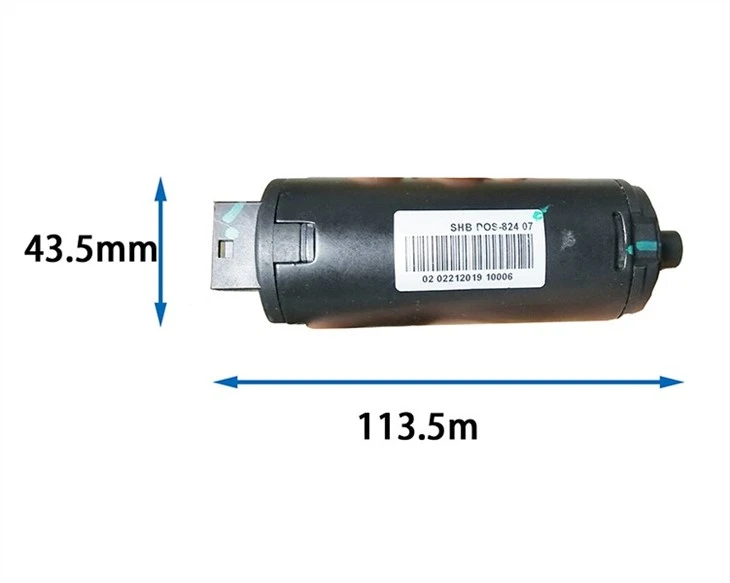

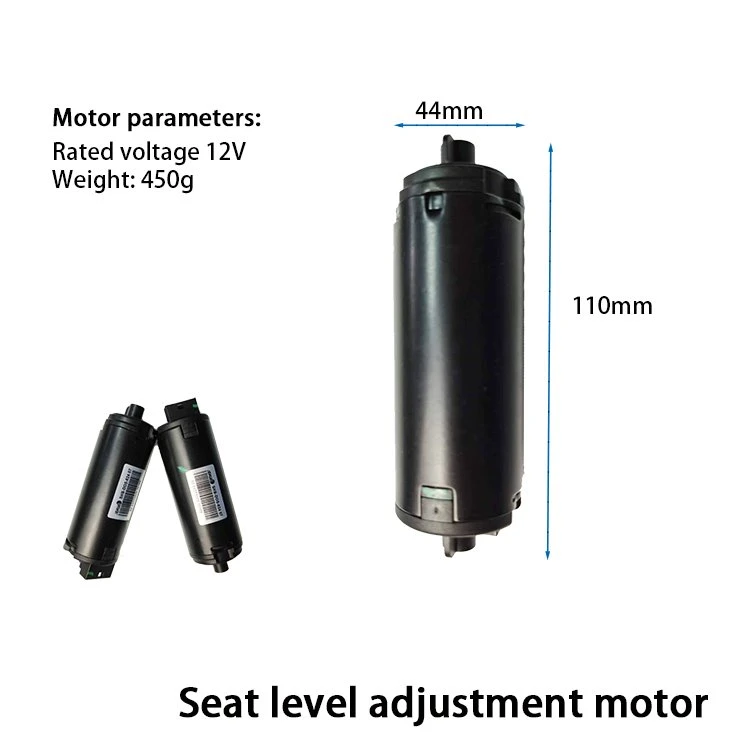

【horizontal motor】
【Function】Connect with the horizontal drive mechanism (HDM) through the flexible shaft to transmit power and adjust the seat to move forward and backward
【Features】 Lightweight, small size, high-quality noise, stable ripple SLP performance
【Application】]GM, Great Wall, Faurecia, Lear, Changan, Nissan, Geely, BYD, etc.
| series | A | B | C | D |
| photo |  |  |  |  |
| diameter | D49 | D44 | D38 | D38 |
| size | Φ49X90 | Φ44X110 | Φ38.5X75 | Φ38X84.5 |
| weight(g) | 600 | 520 | 315 | 350 (33% weight reduction) |
| Magnetic tile | 2 pole ferrite | 2 pole ferrite | 4 very high performance ferrites | 4 very high performance ferrites |
| EMC | Level 2 | Level 3 | Level 3 | Level 5 |
| Development time | 1999 | 2005 | 2009 | 2012 |
| Customer & Model | GM, Cadillac, Buick 3Mpcs | GM, Nissan, Fiat etc. Cadillac cts, xts,cts, Buick ,Escalde Tiida,Renegade 60 M pcs | BMW X5X6 0.3 M pcs | GM Buick, Cadill ac CT6 0.5 M pcs |
| state | Finish | mass production | mass production | mass production |

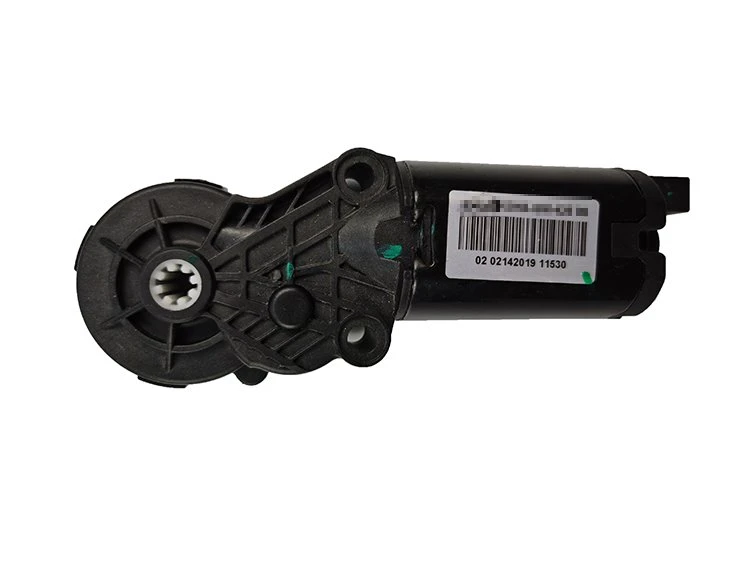

【Angle motor】
【Function】Connect with the angle adjuster through the spline connecting rod, adjust the backrest to the comfortable position of the driver or passenger
【Features】 High-quality noise, can match multiple output gears, and have stable ripple SLP performance
【Application】Ferrari, Aston Martin, Jaguar, GM, Faurecia, Nissan, Great Wall, Changan, etc.
| series | A | B | C | D | ||
| diameter | D49 | D44 | D32 | D40 | D38 | D32 |
| picture |  |  |  |  |  |  |
| size | Φ49x160 | Φ44x160 | Φ32x160 | Φ40X30X140 | Φ38 | Φ32 |
| weight(g) | 680 | 550 | 310 | 430 | 420 | Target 320g (24% lighter) |
| Magnetic tile | 2 pole ferrite | 2 pole ferrite | 4-pole rare earth | 2 very high performance ferrites | 2 very high performance ferrites | 4 very high performance ferrites |
| EMC | Level 2 | Level 2 | Level 2 | Level 3 | Level 3 | Level 5 |
| Development time | 2002 | 2006 | 2009 | 2014 | 2015 | 2018 |
| project (example) | EPS1,V250,S08 | EPS2 | BMW, GM | GM, fisher | Lear | |
| state | Finish | mass production | mass production | mass production | mass production | develop |

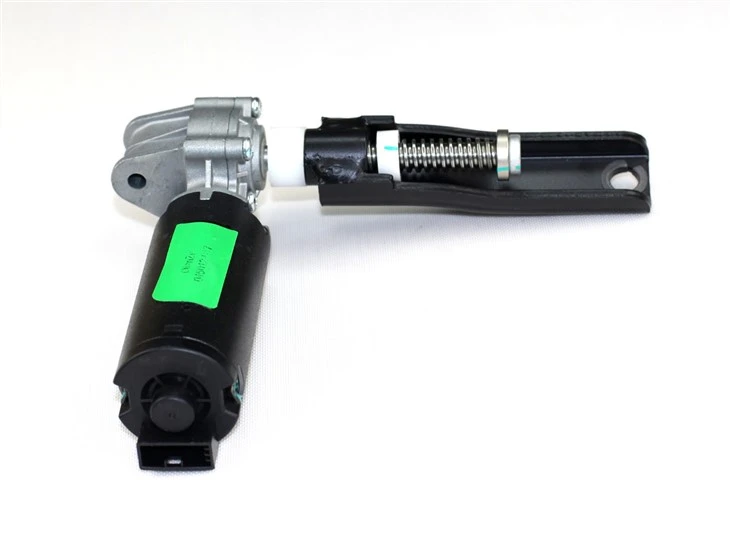

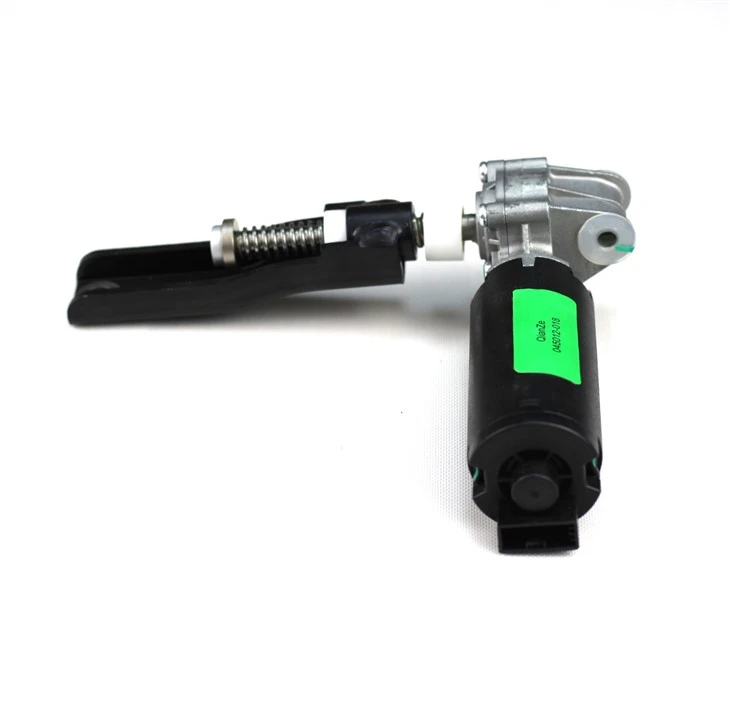

【Rear lift motor】
【Function】The rear lift motor is connected to the rear end mechanism of the seat basin to adjust the seat height position
【Features】Small size, easy to match with different seat frame designs, only need to change and develop the mounting plate in most cases
【Application】GM, Faurecia, Geely, Changan, etc.
| series | A | B | C | |
| diameter | D49 | D44 | D40 | D32 |
| picture |  |  |  |  |
| size | Φ49x150 | Φ44x150 | Φ40* 30* 170 | Φ32 |
| weight(g) | 850 | 710 | 660 | Target 550g (17% lighter) |
| Magnetic tile | 2 pole ferrite | 2 pole ferrite | 2 very high performance ferrites | 4 very high performance ferrites |
| EMC | Level 2 | Level 2 | Level 3 | Level 5 |
| Development time | 1999 | 2005 | 2014 | 2018 |
| project (example) | EPS1,GM360 | EPS2,NISSAN, ETC | GM, Lear, Etc | MAGNA |
| state | Finish | mass production | mass production | DV |
