Description for car interior dashboard

Car Tachometer is an important part of the Car Interior Dashboard to enhance the luxury of the entire interior.

The rear cabin instrument is generally composed of speedometer, thermometer and clock, which is convenient for the guests in the rear cabin to understand the information of time, speed, temperature and so on. At the same time, it is used with partition or overhead light and other interior decorations, which can significantly improve the interior decoration level of the vehicle

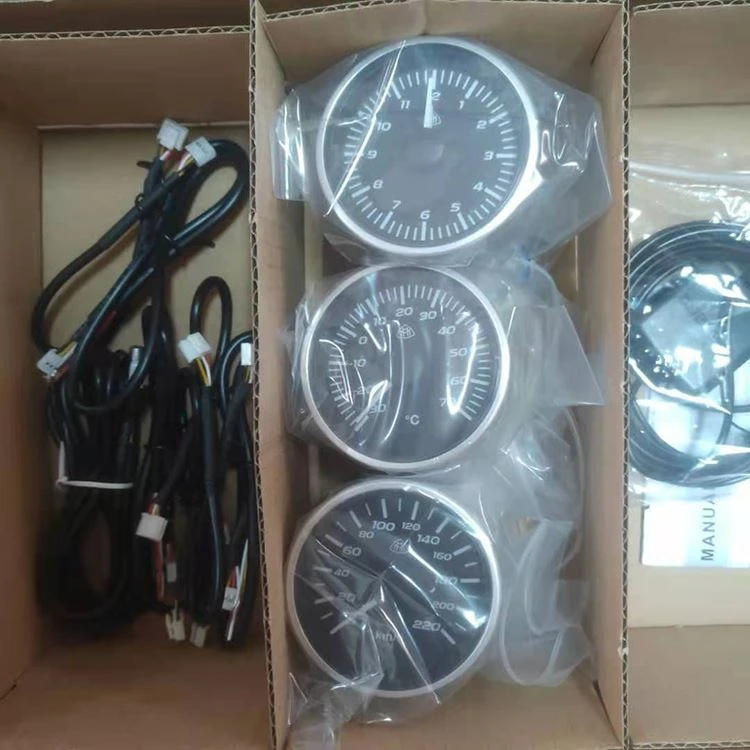

car dashboard images

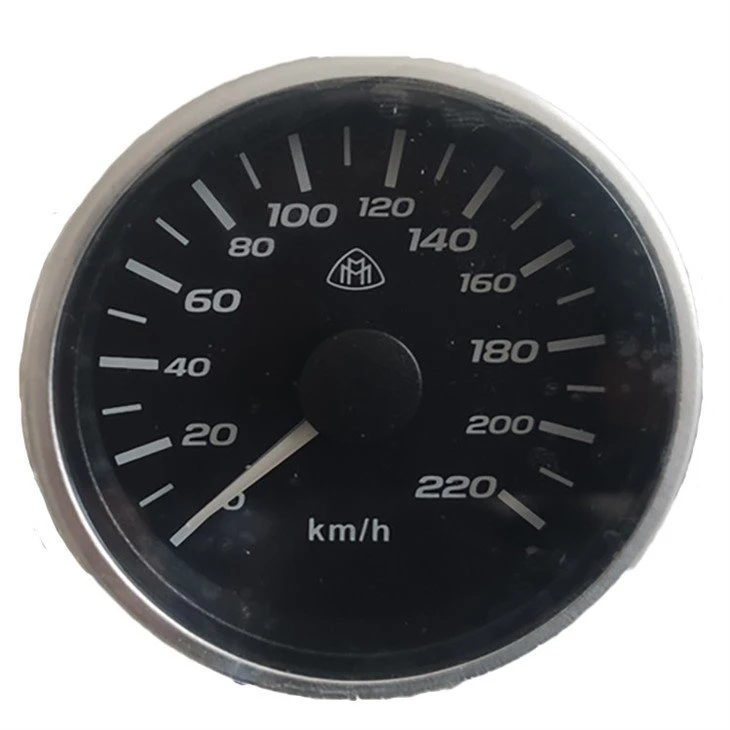

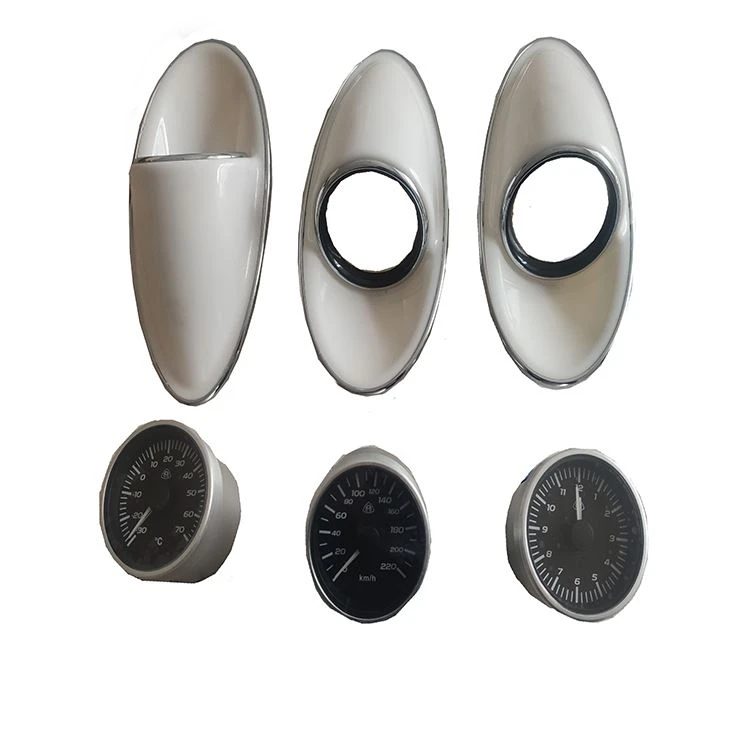

Car dashboard

Product parameters

Nickname (s)	Rear instrument, speedometer, thermometer, clock, speedometer
Function	1. Real-time speed, time and temperature can be monitored 2, built-in atmosphere lamp, can change the atmosphere lamp color according to the vehicle state, or set the atmosphere lamp color automatic cycle
Applicable models	general
Product size	Meter installation diameter 55mm
Weight	1KG
Configuration description	Technical parameters: Working voltage: 9~16VDC, Operating current: ≤150mA(12V); Operating temperature: -30~+75℃ Storage temperature: -40 to +80 ° C Instrument (with light) : speedometer, thermometer, clock Plastic shell The fixed frame 1. Temperature meter: 1 1.78m temperature sensor, 1 200mm double-head connecting wire, 1 470mm power cord 2. Speedometer: 1 3.9m GPS antenna, 1 200mm double-head connecting line, 1 470mm power line. 3, time clock: 200mm double head connection line 1, 470mm power line 1.
Material specification	ABS plastic
Installation	55mm support is locked
