The company electric pedal adopts a new independent intelligent control system.Does not affect the performance of the original car, OBD interface to plug, dual chip control, speed ECU, flexible response, stable operation, completely non-destructive installation;The fixing bracket is installed with the original chassis hole position, without additional drilling.Swing arm bracket adopts all aluminum alloy die casting, CNC finishing molding.

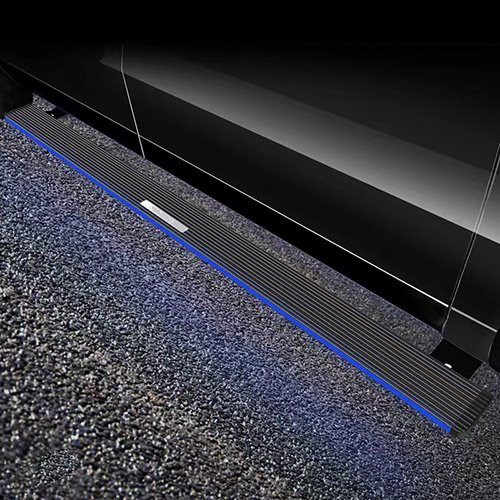

electric fold out running boards

Electric pedal style

One. Standard black gold rigid style

Common universal panel and movable bracket combination, simple and generous.

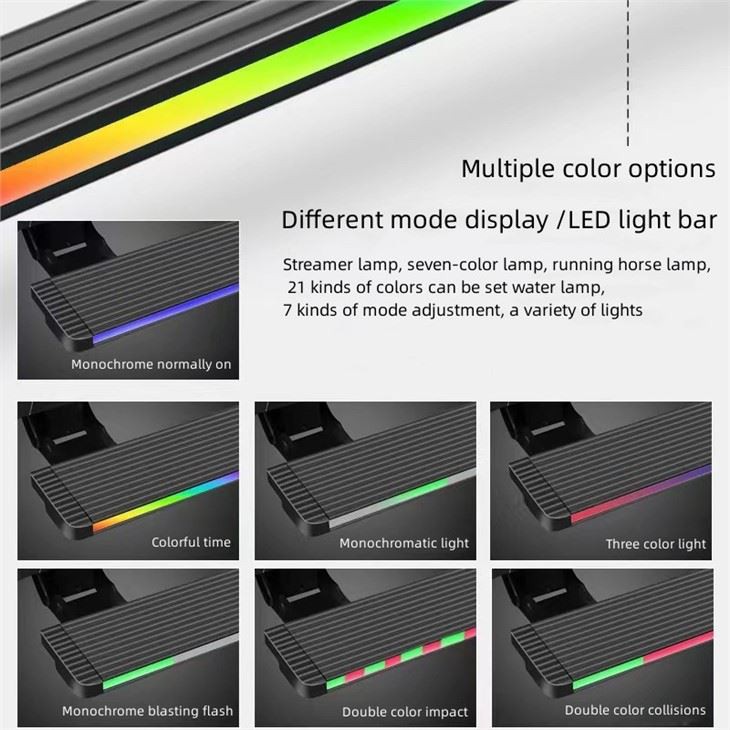

Two, with lights dazzling color

With light panel and movable bracket combination, can be colorful, streamer, dazzling color.

Third, private customization

Customized panel and movable bracket combination, can be customized individual requirements on the pedal, high-end, atmospheric and stable, reflect the unique.

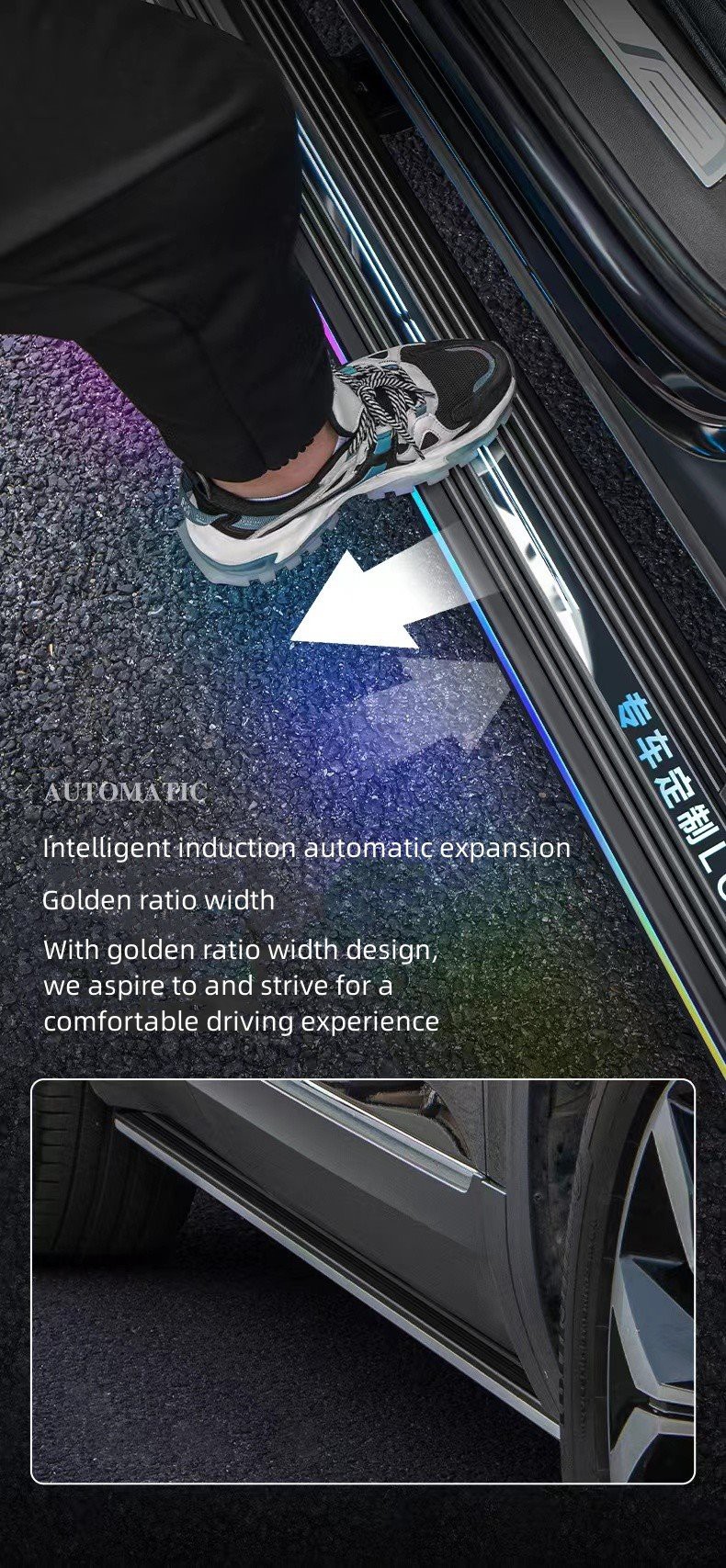

The industry's first left and right independent control lifting intelligent electric pedal.

The left AND right pedals can be independently controlled. When the door is opened on one side, the pedals will extend automatically, and the pedals on the other side will remain unchanged. When the door is closed, the pedals will be automatically recovered and pressed against the chassis of the vehicle.

Intelligent obstacle detection system

When the pedal is deployed, the pedal detects obstacles intelligently and retracts automatically after encountering obstacles;

When the pedal retracts, it will automatically spring back after encountering obstacles.

Panel and end

Panel and end 1

Panel and end

The main body and the end of the electric pedal body are made of aviation aluminum alloy material, which has no color difference with the main body.

motorized running boards accessories introduction

1 pedal bracket

pedal bracket

· The base plate of the mounting bracket is made of solid and high-quality carbon steel of national standard 5.0;

· All surface treatments are electrophoretic + dusting surface treatment, with strong corrosion resistance;

2 Motor swing arm bracket

Motor swing arm bracket

Motor swing arm bracket 1

Motor swing arm bracket 2

· All swing arm supports are made of aviation aluminum alloy die casting;

· Unique dustproof design, prevent sediment and dust from entering the bearing sleeve, reduce abnormal sound and noise;Add lubricating oil inside the dust cover to make the movable bracket run smoothly.

3 ECU control, wiring harness

ECU control, wiring harness

· Special wiring harness for special vehicles, OBD interface of the original vehicle is inserted, and non-destructive installation;

4 Pedal performance parameters

- Operating temperature: -40°C-+90°C;《 BAS - 301》;

- Weather resistance: 1000H xenon lamp aging test;《 BAS - 301》;

- load capacity: 300kg;

- Durability: 100,000 times of ultimate bearing test;

- operating voltage: 12V;

- Working current: 3-5A;

- anti-clip: the extended anti-clip is less than 400N.The retracted anti-clamp is less than 200N;

- noise: less than 60dB.

- Holding time: ≤ 3S;

- Recovery time: ≤ 3S;

5 Motor: Intelligent five-wire motor

Intelligent five-wire motor

· Five-wire motor can truly achieve intelligence:

· Intelligent anti-clip and intelligent guest welcome;

· The motor can still work normally in the working environment of -40 degrees.

· Low noise: the noise of reducer motor is less than 60 decibels in the working process;

· Waterproof performance: All motors are waterproof in line with IPX7 requirements.

6 Connecting shaft and sleeve

Connecting shaft and sleeve

· The rotating shaft is made of 304 stainless steel with diameter of 12mmSUS;

· Dust-proof design is adopted at both ends of the shaft to prevent sediment from entering the shaft sleeve;

· The axle sleeve is designed with engineering composite material, which has the characteristics of wear resistance, good corrosion resistance, high strength, self-lubrication and noise;

7 Install screw standard parts

Install screw standard parts
